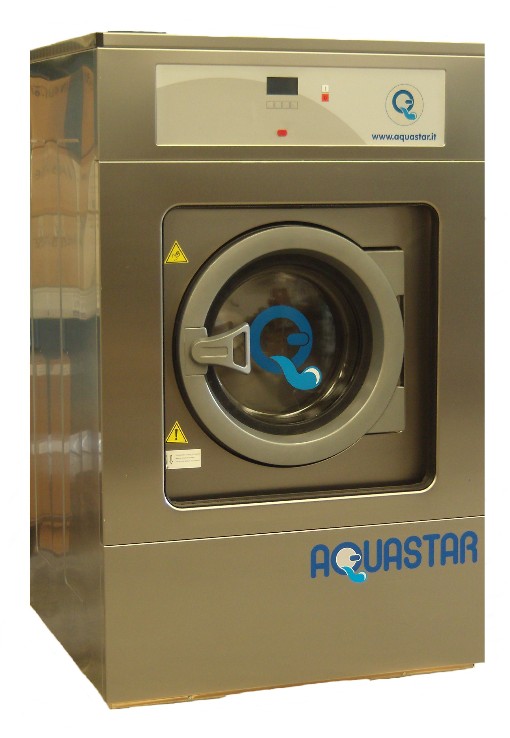

LA 10 13 18 25 M / MP
Our range of high-spin washer extractors LA Series is designed to provide high performance at all times, meeting the most demanding requirements while notably reducing water and power consumption.
The savings achieved in these areas even allow us to guarantee that these appliances will pay for themselves in the medium term.
Our range of high spin washer extractors LA Series includes 10, 13, 18, 25, 40, 60 and 120 kg capacity appliances, and two types of programmers:
Simple microprocessor (M) and programmable microprocessor type (MP).
The stylish new look and cutting-edge technology of these industrial
washer extractors combines with the simplicity of their installation, and
we have even reduced their size without affecting their load capacity.
A stainless steel body, more durable and hard-wearing than painted
plate, and high-quality components.
• Easier repairs, with alarm, statistics control, memory, repair kits and a
drum that can be removed via the front of the appliance, reducing the
minimum space and time required.
• Soft mounted machines: they do not need fixing to the floor on
installation.
• N ew detergent compartment with non-return system.
• Easy connection for automatic product dispensing.
• Automatic unbalance detection system enabling gentler movement
and prolonging the components’ lifetime.
• A G factor of 350 and a spin speed of 700 - 820 rpm, depending on
the model.
• Standard frequency inverter.
Microprocessor Series: M
• 16 standard Wash programmes.
• Water levels configurable to + / -10%.
• Configurable times and temperatures for each wash phase.
• 4 automatic dispensing signals.
• Technical maintenance menu.
• Drain Pump Kit available only for the 10 and 13 Kg models.
• 10 – 25 kg models, also available in a self-service version.
• The range includes a special model for boats (440 Volts/III/60Hz/
without neutral).
PROGRAMMABLE Microprocessor Computer Series: MP
• 99 wash programmes (16 set + 83 programmable).
• Supplied with incorporated “wet cleaning” system.
• Totally adjustable water levels. Own software enabling programming from
a PC.
• Access codes, time delay systems and a user statistics service.
• 3 water inlets and 7 automatic dispensing signals, with programmable
time and delay.
• Technical maintenance menu.
Technical data |
U.M. |
LA 10 |
LA 13 |
LA 18 |
LA 25 |
Loading capacity |
kG. |
10 |
13 |
18 |
25 |
Volume of the drum |
LT |
100 |
130 |
180 |
250 |
Dimensions of the drum |
Ø mm x P |
532X425 |
620X430 |
700X470 |
770X530 |
Washing speed |
G/min |
50 |
50 |
47 |
45 |
Extract speed |
G/min |
1100 |
1000 |
950 |
900 |
"G" factor |
350 |
350 |
350 |
350 |
|
Diameter of the door |
Ø mm |
290 |
373 |
373 |
373 |
Total power hot water version |
KW |
2 |
3 |
4 |
6 |
Total power electrical version |
Kw |
6,75 |
10 |
14,2 |
21 |
Total power steam version |
Kw |
0,75 |
1 |
2,2 |
3 |
Power washing motor |
Kw |
0,75 |
1 |
2,2 |
3 |
Dimensions of the machine LxDxH |
mm |
692x805x1155 |
788x870x1300 |
884X914X1404 |
980X1040X1565 |
Net weight |
Kg. |
208 |
250 |
340 |
500 |
