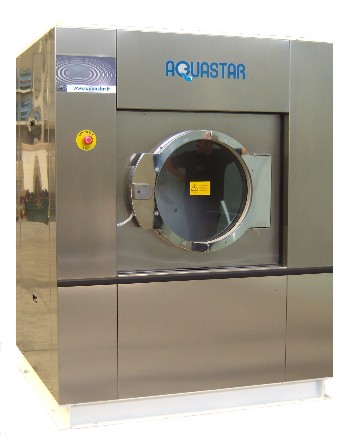

The AQUASTAR LRC series are the ideal solution for the laundry exigencies
of BIG hotels, hospitals, industrial laundry and all those structures which treat
each day big quantity of linen.
Designed to satisfy the needs expressed by the user and realized with the
best available technologies, this washing machines assure high quality results.
Thanks to the TSC 8 computer, the LRC series has no comparison in matter
of flexibility: programs creation is very intuitive and automatic detergent
measuring is very easy.
This range of Low-Spin washer extractors is the greatest recent development
for AQUASTAR, it combines top-class features with a higher than- average
performance, always geared to achieving greater energy efficiency during the
wash, spin and dry processes.
This range of hard mounted machines – require floor fixing – includes 40,
55, 70 and 85 kg capacity models.
• A stainless steel body, more durable and hard-wearing than painted plate,
and high quality components.
• The LRC Series have a robust, rectangular chassis which will reduce vibration
by transmitting them to the ground and prolonging the product’s lifetime.
• Easier repairs, with alarms, statistics control.
• Memory, repair kits and a drum that can be removed via the front of the
appliance, reducing the minimum space and time required.

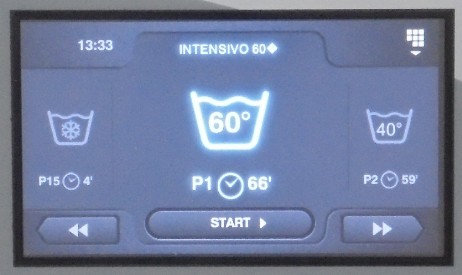

The TSC 8 is the new innovative Touch Screen control system which equips
AQUASTAR LRC series. It is not a simple microprocessor, but a real
computer which enables the LRC series to easily suit the customer laundry
needs and exigencies.
The machine is absolutely user friendly thanks to the use of ICONS, which can
be easily understood and, also, thanks to the TSC 8 ability to dialog in more
languages.
The user needs only to select the wished application and then follow the
instructions visualized on the screen.
Thanks to the high resolution, the LCD can reproduced multimedia files,
pictures, advertisings, user notices, etc.
While the program is running, the screen shows all the operation in execution
and not only: selecting the suitable application, it is possible to access to the
chosen program parameters and modify them.
TSC 8 allows to create, to modify, to name and to save up to 200 programs.
The user, anyway, can create own program in a very simple and intuitive way
and he can choose if the program must be saved or simply used and lost.
TMC 8 has an expandable memory: the program number, therefore, can be
considerably increased.
TECHNICAL FEATURES |
U.M. |
LRC 40 |
LRC 55 |
LRC 70 |
LRC 85 |
Loading capacity |
kG. |
40 |
55 |
70 |
85 |
Extract speed |
G/min |
450 |
408 |
355 |
360 |
Noise level |
dB (A) |
60 |
60 |
60 |
70 |
G" factor |
100 |
100 |
85 |
85 |
|
Dimensions : LxDxH |
mm |
1186X1186X1565 |
1430X1410X1875 |
1430X1572X1815 |
1560X1560X1875 |
Net weight |
Kg. |
600 |
878 |
1100 |
1900 |
