LR 10 13 18 25

Washer extractors > LR Series

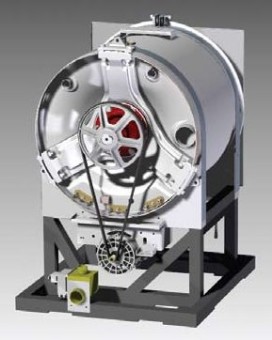

A stainless steel body, more durable and hard-wearing than painted plate,
and high quality components.
• Square structural pipe framework, highly resistant, prolonging the product’s
lifetime.
• Easier repairs, with alarms, statistics control, Memory, repair kits and a
drum that can be removed via the front of the appliance, reducing the
minimum space and time required.
• New detergent compartment with non-return system.
• Easy connection for automatic product dispensing.
• Automatic unbalance detection system enabling gentler movement and
prolonging the components’ lifetime.
• G factor of 200 on all models.
• Standard frequency inverter.

NEEDS FIXING TO THE FLOOR

DATI TECNICI

U.M.

LR 10

LR 13

LR 18

LR 25

Loading capacity

kG.

10

13

18

25

Volume of the drum

LT

100

130

180

250

Dimensions of the dum

Ø mm x P

532X425

620X430

620X600

700X680

Washing speed

G/min

50

50

50

47

Extract speed

G/min

820

760

760

715

G"  Factor

200

200

200

200

Diameter of the door

Ø mm

290

373

373

373

Hot water power

KW

0,75

1

2,2

3

total power electrical version

Kw

6,75

10

14,2

21

total power steam version

Kw

0,75

1

2,2

3

Power washing motor

Kw

0,75

1

2,2

3

Dimensions  : LxDxH

mm

692x805x1155

788x870x1300

788x1080x1300

884x1150x1404

Net weight

Kg.

208

250

340

500
