SERIE SR
Drying surely plays a fundamental role in a laundry process: this in fact determines the final result, linen must come out in perfect condition, both as regards the form and the tissue.

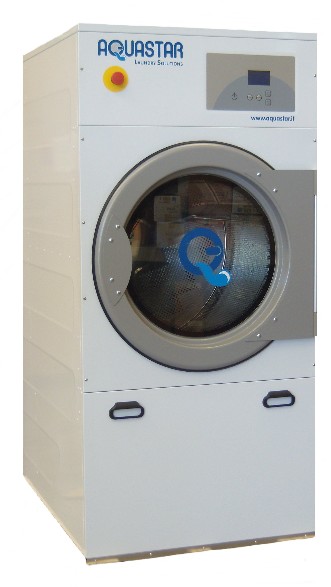

Dryers AQUASTAR of the SR series have been designed with the maximum care.
Reduction in drying time results into energy and costs savings and longer life of the dryer itself.
Through the use of direct transmission without belts and coupled to an inverter controlled by a potentiometer placed on the control panel, you can adjust the drum speed according to the linen or the clothes to dry.
All dryers belonging to the SR series are equipped with a microprocessor with 10 preset and 1 adjustable programs.
The care and quality of fabrics is ensured by a system of temperature control, it is also available as option the control for residual humidity, very useful for the Wet Cleaning system.
• Outer casing in skin plate.
• Frequency converter/rotation reversal in all sizes.
• Standard stainless steel drum.
• Cool down system and moisture configuration selector.
• Geared motor replacing the belt system for ease of
maintenance (on 10, 13, 23 and 32 kg models).
• Tilting system, optional on the 80 kg model

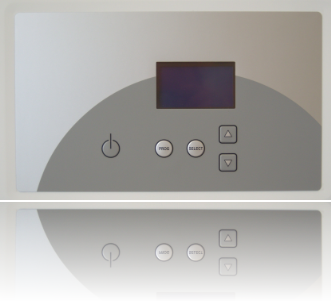

• Microprocessor computer with 10 Programs.
TECHNICAL DATA |
U.M. |
SR 10 |
SR 16 |
SR 25 |
SR 32 |
SR 40 |
SR 60 |
SR 80 |
Loading capacity |
kG. |
10 |
16 |
25 |
32 |
40 |
60 |
80 |
Electrical heating |
KW |
12 |
18 |
30 |
40 |
54 |
72 |
72 |
steam heating |
Kw |
0,48 |
0,48 |
0,85 |
1,4 |
2,25 |
2,25 |
5,5 |
gas heating |
kw |
0,48 |
0,48 |
0,85 |
1,4 |
2,25 |
2,25 |
5,5 |
Dimensions lxdxh |
mm |
785X857X1700 |
785X1127X1700 |
890X1330X1781 |
985X1224X1915 |
1270X1095X2375 |
1270X1355X2375 |
1270X1355X2375 |
Net weight |
kg |
170 |
190 |
328 |
350 |
500 |
550 |
600 |
